Free Shapefiles of Countries of the World (3)


Free Shapefiles of Countries of the World (3)


This is part three of the comparison of free shapefiles of countries of the world. After feedback, new sources, blogs and tweets (thanks everyone) on my previous blogs (part 1 and part 2), I decided to show some things more.

Edited: Note that part 4 handles an additional shapefile, referred as 13 here.

Let's now look at the north of Italy, where several countries are situates: Italy itself, France, Switzerland, Austria, Germany, Slovenia, Croatia, and some very small countries:
  • San Marino
  • Liechtenstein
  • Monaco
  • Vatican City
And I can't really believe what I saw today. Vatican City has been moved by some shapefile creators...

Vatican City

With respect to Vatican City, all shapefiles that I found are wrong. Below an image created with Google Earth showing boundaries. The yellow one is Google's, so not from a shapefile. It is accurate. I really want a shapefile with Google's country borders! Didn't found it until now, even not in KML-format. All others displayed, 3, 5, 6, 7, 9 are not accurate, but acceptable. I know that Vatican City is a very small country, that on a worldscale map you could not expect too much detail, so it might make sense that they display the country border only roughly. So these are all reckoned sufficient... with respect to the requirements, see more about that below.

im3b


But I was really amazed by the other ones, in the zoom out below. Those (1, 2, 8, 12) are all wrong. (Remember that all numbers refer to numbered sources from previous blog, completely listed below). About 1: we already knew that it was far too rough, and it is actually understandable: it exaggarates small countries to show them on a worldscale map. Understandable. But 2, 8 and 12 are completely wrong. Especially from 12 (source:  eurostat, europa.eu) you would not expect this. What has happened here...

im3a


Some sources (4, 11) do not have Vatican City at all.

Monaco

For Monaco it is a little better, in the sence that countries are not moved by 24 kilometers. But most shapefiles are more or less wrong, 12 being the only exception.

im2c

The Yellow line is Google again, and 12 is the cyan one following it. All the rest is wrong.

Liechtenstein and San Marino

The other small countries, San Marino and Liechtenstein, are both displayed more or less acceptable in all but 1, 2 and 8 (all omitted in the pictures - 8 is for Liechtenstein OK). Number 12 (cyan) also here follows Google the most closely.
im3d

Based on this pictures, 12 (from Eurostat) is following Google's country borders the most closely, with an amazing exception being Vatican City, where it is totally wrong. The rest of the sources shows not a real winner here.

Elba

Not a country, but also compared, the island Elba is another sample where the vertices of source 12 (Eurostat) follow the borders of the island quite closely. Cyan is the 3M version, blue the 10M, darker (and paler) blue the 20M. In the 60M version Elba is omitted. I agree with this all. The other borders, magenta here below, are all worse. And I omitted 1,2 and 8 here because they are even more wrong.


Requirements

In the last two blogs I made remarks about the quality, but I didn't really listed them as formal requirements. So let's start with that now. They are composed on the fly, and maybe a bit subjective, I know that.
  • NL1: The five inhabited islands in the Waddensea in the Netherlands should be present
  • NL2: The inner lake in the Netherlands should be included
  • NL3: The polders in the Netherlands should be visualized correctly, so absence of non-existing polders and presence of polders existing since 1968 (sometimes you have to make requirements quite explicitly...)
  • CS1: The Caspian Sea should be there
  • DB1: Countries should be one multi_polygon per country, not separate polygons
  • DB2: All (multi)geometries should be valid within SQL Server 2008
  • DB2: All (multi)geometries should be valid within PostGIS
  • SM1: Vatican City should not be moved and (probably) not be omitted
  • SM2: Monaco's borders should follow real borders
  • SM3: San Marino's borders should follow real borders
  • SM4: Liechtenstein's borders should follow real borders
  • SM5: Elba's borders should be followed

In the table below the requirement list is crossed against the shapefiles.

# NL1 NL2 NL3 CS1 DB1 DB2 DB3 SM1 SM2 SM3 SM4 SM5
1 OK OK -
OK OK 1 1 Enlarged Enlarged Enlarged Enlarged Very poor
2 OK OK - OK OK 4 4 26 km off Very poor Very poor Sufficient Very poor
3 OK OK OK OK OK 34 5 Sufficient Poor Sufficient Good Sufficient
4 OK OK - polygons OK 1 6 Omitted Poor Sufficient Sufficient Poor
5 OK OK - OK OK 5 4 Sufficient Poor Sufficient Sufficient Poor
6 2 OK - - OK 3 OK Sufficient Poor Sufficient Sufficient Poor
7 2 OK OK - OK 2 7 Sufficient Poor Sufficient Sufficient Poor
8 2 OK - OK OK OK OK 26 km off Poor Poor Sufficient Very poor
9 OK - - OK OK 17 9 Sufficient Poor Sufficient Sufficient Sufficient
9b OK - - OK OK 3 3 Sufficient Poor Sufficient Sufficient Sufficient
9c 0 - - OK OK OK 1 Sufficient Poor Omitted Sufficient Omitted
11 0 - - OK OK OK OK omitted Poor Sufficient Good Omitted
12 (3m) OK - - OK OK 13 1 24 km off Excellent Excellent Excellent Excellent
12 (10m) OK - - OK OK 4 OK 24 km off Good Good Good Good
12 (20m) 2 - - OK OK 2 OK 24 km off Good Sufficient Sufficient Sufficient
12 (60m) 0 - - OK OK 2 OK 24 km off Sufficient Poor Poor Omitted
Edited: 13 OK - - as separate
country
OK 47 OK Excellent Poor Excellent Excellent Excellent

All sources compared by image

The images below show the same picture, using all shapefiles, as we did in the previous blog, but now showing these four countries, Italy, and parts of the surrounding countries.

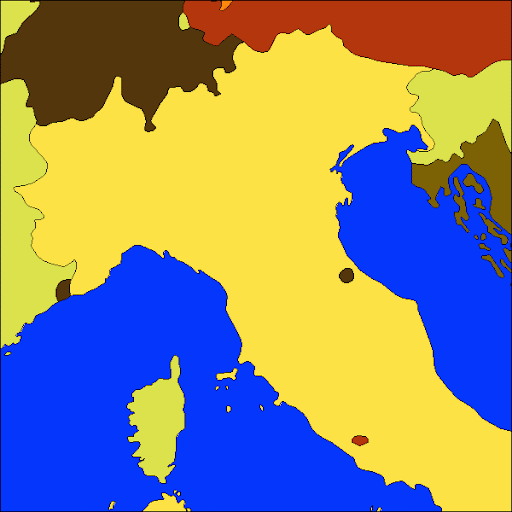

i1
  • (1)
  • from aprs
  • file world.shp

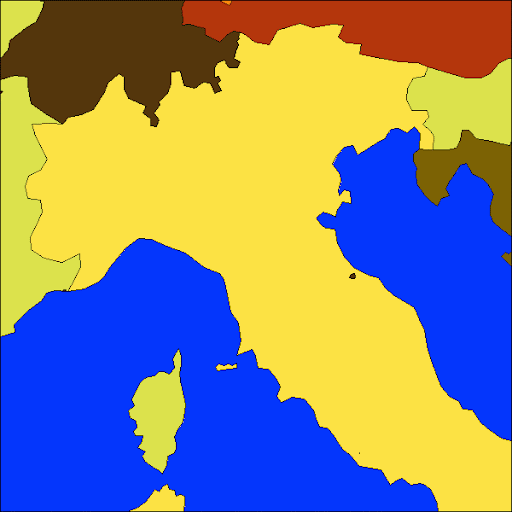

i2
  • (2)
  • from brothersoft, serving blue marble data
  • file World_countries_shp.shp
i3
  • (3)
  • from Geodan
  • file WorldCountries.shp

i4

i5

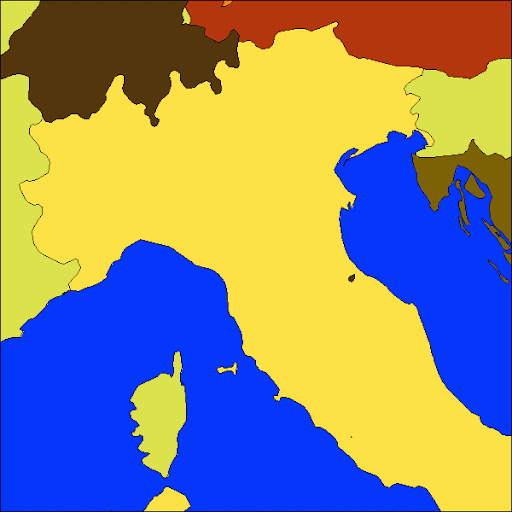

i6
  • (6)
  • from openmap here, called cntry02
  • file cntry02.shp
i7
  • (7)
  • from this site ESRI data
  • file cntry08.shp
i8
i9a
i9b

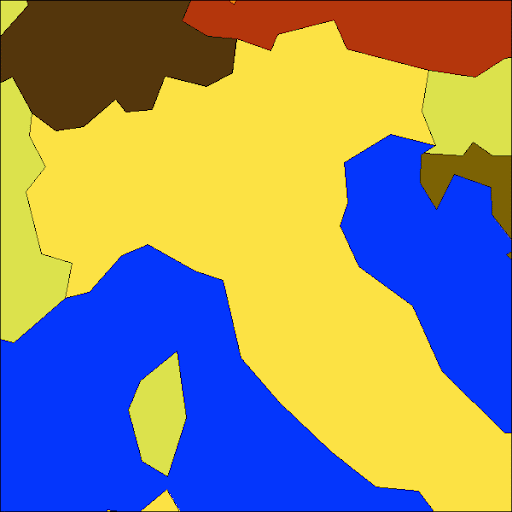

i9c
(10). Empty
i11
  • (11)
  • from huebler
  • file world_adm0.shp
i12_3
  • (12 1:3m)
  • from eurostat
  • file cntr_rg_03m_2006.SHP
i12_10m
  • (12 1:10m)
  • from eurostat

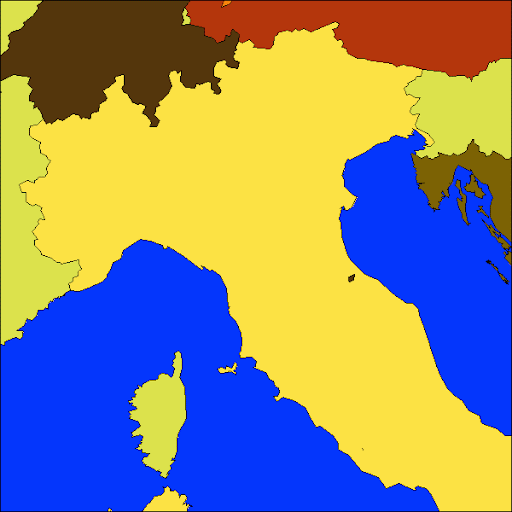

  • file cntr_rg_10m_2006.SHP
i12_10m
  • (12 1:20m)
  • from eurostat
  • file cntr_rg_20m_2006.SHP
i12-60m
  • (12 1:60m)
  • from eurostat
  • file cntr_rg_60m_2006.SHP


Conclusion

Again thanks to commentor Alectora who suggested Eurostat, it is a nice set of four datasets in different scales. The 1:3 million version is excellent in most measures, but it is a pity that Vatican is displaced and the IJsselmeer in the Netherlands is omitted. And that some polygons are not valid...

I still think a good and free shapefile of the world is still welcome.


Friday, December 24, 2010

Doxygen and QuickBook


Doxygen and QuickBook


Doxygen and QuickBook are both great tools for generating documentation from C++ code. But their cooperation is quite complex... let's say, a challenge.

Quickbook

QuickBook (QBK) is based on BoostBook, which used to be the documentation tool for Boost Libraries. BoostBook is on its turn based on DocBook.

With QuickBook (and also BoostBook) you can make good looking library documentation describing headers, examples, syntax highlighting, etc. Look at the QBK website for more information. For example, I like the callouts.

QuickBook input files (extension .qbk) are plain text files with Wiki style commands. However, when using QuickBook alone it is not maintainable to document hundreds of classes and functions, you really should have a link to the source code. And that is what Doxygen is doing.

Doxygen

Doxygen is a standalone tool, accepting C++ source code (it accepts other languages as well) with JavaDoc style comments to document function parameters, etc. Look at the website for a manual. While Doxygen does a great job, the generated documentation is often considered a bit too technical. In the review report was included:

Using Doxygen alone as a documentation tool has its (known) shortcomings when it comes to generic libraries.

And the individual reviews mentioned things as : "I think doxygen is convenient for developers but not very useful for users, because of the high structure/content ratio." and "I really did not like the doxygen generated content.  I found it difficult to find the real documentation among all the doxygen generated fluff." and "I have a general problem with doxygen generated docu with regard to generic libraries. It not easy to separate the important classes and fuctions from the implementation details. GGL helps with this through Grouping by modules and a overview Page, but  it could be even better. I think the Modules should them self be further grouped, and the most important should be highlighted.".

This does not mean that Doxygen is wrong or bad, and maybe we did not spend enough time to configure it right. An individual review also mentioned: "Doc: Excellent. Looks very nice. Only an index is missing - but extensive Doxygenation including Doxygen comments are far above what passes for documentation in many packages". We did our best at least.

Anyway, people do like QuickBook generated documentation, so we, with Boost.Geometry, are moving to QuickBook. But we want to keep Doxygen there to link with the source code.

Doxygen -> QuickBook via XSLT

It is certainly possible to let Doxygen and QuickBook work together. Doug Gregor wrote here:

(...) If I haven't scared you yet, I'll put it in a diagram:

C++ sources -> Doxygen XML -> BoostBook XML -\
                                              -> Merged BoostBook XML
Quickbook sources -> BoostBook XML ----------/

Then, for the output:

Merged                      /--> HTML
BoostBook --> DocBook XML ------> FO --------> PDF
XML                         \--> Man pages

Look complex? It is. (...)

So it is complex. Especially the XSLT file to convert from Doxygen XML to BoostBook XML proved complex and sometimes incomplete, we (Mateusz) spent time on it and achieved good documentation, but it was really complex. And in the end, you don't get QuickBook, you get BoostBook... Suppose you want something different, for example adding "complexity" to the documentation... It means changing the XSLT files again.

What is in the docs?

I like to see in documentation, per function or per class:
  • What it does
  • The header where the function or class is found
  • Its parameters (for a function)
  • Its return type (for a function)
  • Its limitations
  • An example (this is very important)
  • An image (very important for a geometry-library, probably not for all libraries) to show what it is doing
  • Behaviour in various combinations
  • Its complexity
The cplusplus documentation has for every function or method a little example, I like that. It is great for programmers who program by example. Examples need to be compilable examples, they need to be extracted from real compiled code, otherwise old constructs or other obsolete things or typos will stay there unnoticed. You see that often.

About behaviour: within Boost.Geometry, one function (e.g. distance) can do many things (distance between two points, between point-and-polygon, etc). We also have multiple dimensions (2D, 3D) and coordinate systems. The behaviour of the functions might be different in different circumstances. Therefore, we want to have a possibility to document these differences explicitly.

Besides this, we often have two overloads, one with a so-called strategy, giving the library user the tools to change default calculation methods, or one without, so sticking to the defaults. Besides these differences, these overloads are the same. So documentation is the same. Where does the documentation come from? From the sources. Do we want to have the same documentation duplicated for two functions? No. Or probably not.

Don't repeat yourself, and macro's

Doxygen does have an overload option, but it seems to work only for overloaded member functions. We are overloading free functions, which are often heavily templated. I didn't have success to get Doxygen's overload construct running with our code.

Anyway, Doxygen provides a great utility: an alias. This is a sort of a macro, expanding to whatever you specify. So when we think we repeat ourself (e.g. writing for a template parameter "Coordinate system (e.g. cs::cartesian)", which will be found at many places) we can introduce an alias there, param_macro_coorsystem, and we can use it in the documentation.

The result looks cryptic, but at least you don't repeat yourself and if you want to change that sentence, you do it in one place.

To make the picture complete: QuickBook also provides a great utility: a macro. This is doing about the same: it is a placeholder which is replaced by quickbook by the actual text.

So we can actually chose: write plain English, take an alias, take a macro. Or mix them.

Repeating yourself is usually not so good, but in documentation, it cannot always be avoided. Refactoring all repetitions from comments and document fragments will result in a very cryptic developer-defined language. Actually, it is already looking cryptic now, read on...

Doxygen -> QuickBook via parser

As described above, the XSLT process to go from Doxygen to BoostBook was not completely satisfactory for us, with all our requirements to documentation. It probably can be done, but requires high XSLT skills, and who nowadays still writes XSLT? There are a lot of libraries parsing XML, in C++ (and in other languages), and for a C++ programmer it is quite easy to parse the Doxygen XML and output QuickBook. So that is what is done... We developed a new tool, doxygen_xml2qbk. It goes from the XML's generated by Doxygen to QBK.

The tool might be more useful in general (for more Boost libraries), but currently it does its job for Boost.Geometry.

It is currently (lightly) based on RapidXML (great library, by the way, and super fast).

The markup

So we document functions like this, I take here the area function:

/*!
\brief \brief_calc{area}
\ingroup area
\details \details_calc{area}. \details_default_strategy

So these lines use macros to say that it is calculating the area (brief), and again that it is doing that (detail). The differences in brief and detail are Doxygen differences, sometimes convenient, sometimes not. Then  a remark-macro is added that this function takes the default strategy. That is the case with a lot of functions, therefore it is a macro, to avoid repetition. Then it continues:

\tparam Geometry \tparam_geometry
\param geometry \param_geometry
\return \return_calc{area}

So here the parameters are described. There is a template-parameter (Doxygen's tparam) and a parameter (Doxygen's param). Those are similar, geometry! Not literally the same, but the parameter geometry (lower case) is of the type Geometry (Camel Case). This is the case for most of the functions, accepting sometimes one, sometimes two geometries. Therefore macro's (\tparam_geometry) are introduced here... Below we will see that they can be handled in the same line! Though not everyone is convinced of that feature. It might go away or be made flexible.

Avoiding repetitions: it the same for the return value, after Doxygen's \return. It would be possible to write here: "the function area calculates the area of the input geometry". For the function length we will write (about) the same comment (replace area with length). For perimeter the same. Et cetera. So, to avoid repetition, we created the cryptic macro \return_calc, with a parameter a literal string (in this case "area").

We continue:

\qbk{example,area_polygon}
\qbk{example,area_polygon_spherical}

So this is a Doxygen Alias (\qbk) to generate an XML node called <qbk.example>, it generates two of them, one per line. Such an XML node is recognized by our new tool doxygen_xml2qbk. And that tool generates, as expected, an example section. So these two lines generates this QuickBook syntax:

[heading Examples]
[area_polygon]
[area_polygon_spherical]

Where area_polygon can be found in one of the examples, using a QuickBook construct to show a syntax highlighted example.

We continue:

\qbk{behavior,__0dim__:[qbk_ret 0]}
\qbk{behavior,__1dim__:[qbk_ret 0]}
\qbk{behavior,__2dim__:[qbk_ret the area]}
\qbk{behavior,__cart__:[qbk_ret the area] __cs_units__}
\qbk{behavior,__sph__:[qbk_ret the area] __sph1__}
\qbk{behavior,__rev__:[qbk_ret the negative area]}

This all goes to a xml.behavior node, and then to a QuickBook behavior section, a table describing the behaviour for 0 dimensions (point), 1 dimension (linear), etc. All this is macro'd, where __sph__ is also a QuickBook macro, and [qbk_ret] is also a QuickBook macro. They can be nested as well. qbk_ret just says "returns". It has the same length, the only advantage is that you don't repeat yourself in words but now in macros.

OK, using two macro systems through each other, some having a specific meaning for our converter tool, this is quite complex and I realize that. But on the other hand, if everything is written in words here, it is probably unmaintainable.

The results

Let's finally show the results here, as screen-dumps.

Doxygen generates this piece:
q1a

To be honest, we must say that examples (using syntax highlighting) within Doxygen are certainly possible as well.

With Doxygen-conversion-QuickBook the following piece is generated:

qb1b


So we see what our \qbk alias does here... It generates the sections behavior, complexity, examples, and might generate more.

I like it, despite its complexity.
